B44 on the cheap!

Post by koncretekid » Sun Nov 10, 2019 1:44 am

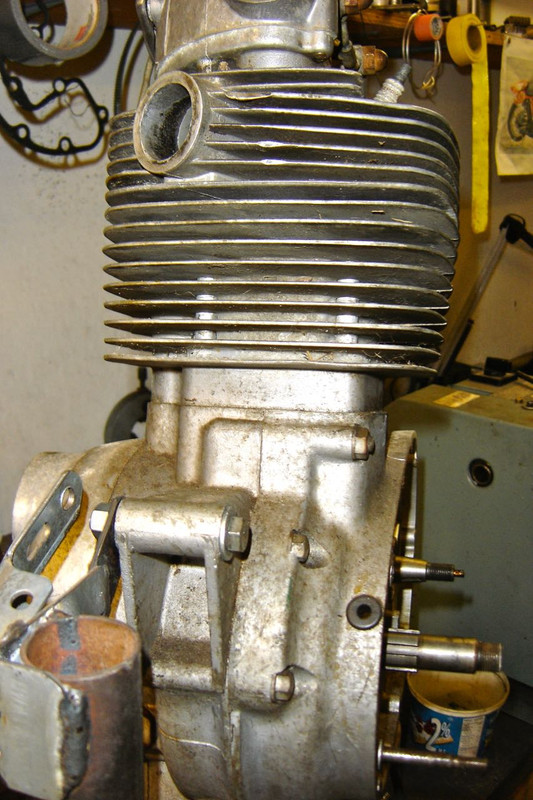

So I had this B44 motor that came with a bunch of parts including 2 frames, this motor plus enough to make another one (almost), a B44SS gas tank and oil tank (fiberglass), several wheels, and a barrel of miscellaneous junk (literally a barrel of parts). I had sold B44SS frame and matching cases, front end and tanks, but ended up with this motor which was supposed to have been rebuilt, apparently in the last century:
I decided to rebuild it again, including the crankshaft which I disassembled and sent to Ed Valiket who hones the rod and supplies oversize rollers.

When it comes back and with a bit of polishing, it looks like this:

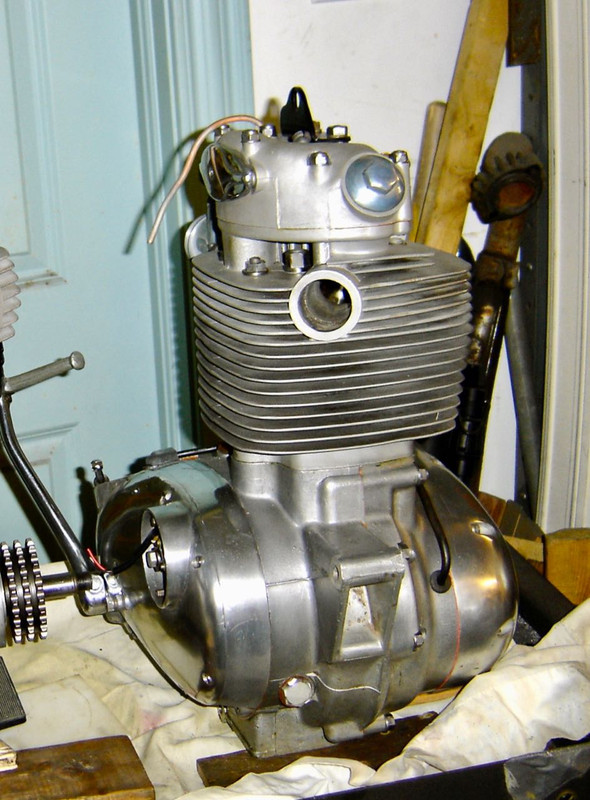

And with some new main bearings and transmission bearings, etc. it finally looks OK:

life's uncertain - go fast now

User avatar
koncretekid
>860
>860
Posts: 862
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 9 times
Flag: Canada

Re: B44 on the cheap!

Post by koncretekid » Sun Nov 10, 2019 2:07 am

The barrel of parts and one of the hubs combined to make a nice QD wheel when spoked up to a Borrani rim I had purchased years ago on ebay, because no one wanted it with holes in the shoulders for motocross work. I did not know what it would fit, but it spoked up perfectly with some old spokes I had. SS spoke would have been nice, but this was to be a parts-off-the-shelf bike. Someone wanted to know what it weighed, I took this photo on the bathroom scales:


The frame is a 1970 B25 but it was brown with rust. A couple of hours of sandblasting and some 2-part frame paint fixed it up pretty nicely.


Fitting the wheel to the frame with a couple of old Girlings, I think from a Norton Commando, was a good start:

life's uncertain - go fast now

User avatar
koncretekid
>860
>860
Posts: 862
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 9 times
Flag: Canada

Re: B44 on the cheap!

Post by koncretekid » Sun Nov 10, 2019 2:29 am

I had a nice set of OIF forks from a T or MX B50 or B25, the type with the matt as cast finish that were fitted to the B25 frame by making bushings to use the OIF tapered roller bearings:


A close up of the top bushing/bearing shows I did not make the cups quite deep enough to completely enclose the seals. But after a half day of machining, I decided to let it ride for now until I have another suitable piece of material, aluminum next time, to redo them.


I also had an 8" full width hub, axle, and a SLS brake plate with the "keyway" type brake stay. I machined the head of a 3/8" bolt to fit the keyway and with a couple of washers, it looks like it will work fine for the kind of work this bike will be doing (jigging around the countryside and maybe the cow pastures.)


Mounted on the forks, it looks like this:

life's uncertain - go fast now

User avatar
koncretekid
>860
>860
Posts: 862
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 9 times
Flag: Canada

Re: B44 on the cheap!

Post by koncretekid » Sun Nov 10, 2019 2:43 am

I decided to go with an old school black theme so painted the triple clamps and the sliders black to match the frame. Installed the motor as well.


I also had a Weimer (sp?) front rim, probably from a BMW, which nicely spoked up the 8" BSA hub.


Which brings the project up to date:


Tom
life's uncertain - go fast now

Pelle
>20
>20
Posts: 22
Joined: Fri Aug 01, 2014 11:20 pm
Location: Sverige
Has thanked: 0
Been thanked: 2 times
Flag: Sweden

Re: B44 on the cheap!

Post by Pelle » Sun Nov 10, 2019 9:44 pm

Some day I will probably try a OIF fork on my WD B40, so I'm watching and learning.

User avatar
koncretekid
>860
>860
Posts: 862
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 9 times
Flag: Canada

Re: B44 on the cheap!

Post by koncretekid » Mon Nov 11, 2019 2:38 am

I made my own adapters because I already had the bearings for the OIF frame. But BSA Unit Singles (see above) has the proper adapters with the bearings here:

https://www.bsaunitsingles.com/item.wws ... SRMB44-OIF

They are SRM I believe, but I had thought they no longer made them.

Tom
life's uncertain - go fast now

User avatar
koncretekid
>860
>860
Posts: 862
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 9 times
Flag: Canada

Re: B44 on the cheap!

Post by koncretekid » Wed Nov 13, 2019 9:10 pm

Double posting due to internet problems.

Tom
Last edited by koncretekid on Wed Nov 13, 2019 9:16 pm, edited 1 time in total.
life's uncertain - go fast now

User avatar
koncretekid
>860
>860
Posts: 862
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 9 times
Flag: Canada

Re: B44 on the cheap!

Post by koncretekid » Wed Nov 13, 2019 9:13 pm

We had some unusually warm weather for a couple of days so I sandblasted, sanded, "Bondo'd" a TRT25 OIF steel tank I had and painted it this morning with some paint leftover from the Bridgestone 350 project. Other than a few sags in the metalflake, it came out looking very good. I'm still trying to decide of a paint scheme.


Meanwhile I'm thinking I'll splurge for a short trials type seat to get the look I want.

Tom
These users thanked the author koncretekid for the post:
B44Claus (Thu Nov 14, 2019 12:09 am)
Rating: 33.33%
life's uncertain - go fast now

beat
>1400
>1400
Posts: 5542
Joined: Sun Jun 04, 2006 5:33 pm
Location: Switzerland
Has thanked: 0
Been thanked: 28 times
Flag: Switzerland

Re: B44 on the cheap!

Post by beat » Wed Nov 13, 2019 9:32 pm

:thumb :thumb :thumb

User avatar
ringding
>200
>200
Posts: 217
Joined: Sun Jul 29, 2012 9:43 pm
Location: Bristol, UK
Has thanked: 10 times
Been thanked: 1 time
Flag: Great Britain

Re: B44 on the cheap!

Post by ringding » Wed Nov 13, 2019 10:53 pm

Excellent!! :thumb
'67 C25 Barracuda
'81 RD250LC
'88 Y*maha TDR250

ridingalongwayslowly.blogspot.com

B44Claus
>160
>160
Posts: 169
Joined: Fri Jul 07, 2006 12:49 pm
Location: Denmark
Has thanked: 3 times
Been thanked: 1 time
Flag: Denmark

Re: B44 on the cheap!

Post by B44Claus » Thu Nov 14, 2019 12:11 am

Looks super cool!

brgds,
Claus
B44Claus

User avatar
koncretekid
>860
>860
Posts: 862
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 9 times
Flag: Canada

Re: B44 on the cheap!

Post by koncretekid » Mon Dec 02, 2019 1:57 pm

I got busy with the paint gun and added a bit of color. Just need to decide which BSA logo to use on the tank.

New seat is coming from England - - hope I don't have to wait for Brexit to get it!



Tom
life's uncertain - go fast now

Barry Creary
<1100
<1100
Posts: 1151
Joined: Sun Oct 02, 2011 3:49 am
Location: Sydney Australia
Has thanked: 0
Been thanked: 9 times
Flag: Australia

Re: B44 on the cheap!

Post by Barry Creary » Mon Dec 02, 2019 6:50 pm

Very nice Tom :thumb :thumb

User avatar
Ian Hingley
>1400
>1400
Posts: 1999
Joined: Sat Jun 30, 2007 2:50 pm
Location: Bristol, UK
Has thanked: 9 times
Been thanked: 8 times
Flag: Sao Tome & Principe

Re: B44 on the cheap!

Post by Ian Hingley » Tue Dec 03, 2019 9:51 pm

We'll do a great trade deal with Canada, Tom.

So they tell us anyway...

Cheers

Ian
66 BSA Victor Enduro, 72 BSA Lightning, 62 BSA B40 trials, 2015 Truimph Street Twin, 89 H*nda Bros 650, 96 Aprilia Moto 6.5, 2000 Aprilia Moto 6.5

User avatar
koncretekid
>860
>860
Posts: 862
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 9 times
Flag: Canada

Re: B44 on the cheap!

Post by koncretekid » Sun Dec 08, 2019 11:08 pm

Well Ian, I'm pretty sure that Canada and the UK will always be good trading partners, but it seems that our leaders vs. that large country to our south may not see eye to eye!

In any case, I didn't have to wait for Brexit, as my new seat arrived a couple of days ago with a bill for $30 for tax and handling. I made a couple of brackets as well as modifying an exhaust of unknown origin to fit the B44. I'm not going to finish welding the exhaust until I can get a "peanut" muffler", but it looks promising.
B44 Trials seat bracket.jpg
Bracket for seat
B44 exhaust mod side view.jpg
modified exhaust
B44 with tank, seat, and test fender.jpg
B44 with seat, tank, and rear fender
Tom
life's uncertain - go fast now

User avatar
koncretekid
>860
>860
Posts: 862
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 9 times
Flag: Canada

Re: B44 on the cheap!

Post by koncretekid » Sat Jan 18, 2020 10:03 pm

I broke down and bought a new headlight bucket from British Cycle Supplies, and ordered an LED headlight from China (delivery to N.S. in less than 2 weeks). But, I had to rewire the bike negative ground to get it to work. No big deal as I had done all the wiring myself so just had to reverse the wires on the battery, the regulator/rectifier, and the Boyer ignition. I also added a relay for the horn to limit the current going thru the ignition.

Just need gas, oil, and a bit warmer weather (-10 degrees Celsius today). Then I have to go thru the steps to get it titled and registered.



life's uncertain - go fast now

User avatar
SteveS
>480
>480
Posts: 481
Joined: Mon Jul 10, 2006 8:28 pm
Location: Nuneaton, Warks. U.K.
Has thanked: 0
Been thanked: 5 times
Flag: England

Re: B44 on the cheap!

Post by SteveS » Sun Jan 19, 2020 7:56 am

Hi Tom

The bike's coming along nicely :thumb . What's the plan for the front fender? The BSA / Triumph 3 hoop type would look good.

I hope the process to get the bike titled and registered is not too painful as I have heard it can be tricky for you guys across the pond.

Regards
Steve Sewell

User avatar
koncretekid
>860
>860
Posts: 862
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 9 times
Flag: Canada

Re: B44 on the cheap!

Post by koncretekid » Sun Jan 19, 2020 1:43 pm

I'm undecided on front fender. I have a high mount from a B25T which will fit and a chrome fender, but I'm not sure I want a chrome front fender with the aluminum rear. Is the 3 hoop one the same as B50 but with the extra vertical brace?

As for licensing, I've done it before. Just need bill of sale for the frame and motor, fill out several forms, photos, and invoices, submit to the Provincial DOT, and wait 6 months for the inspector to come down my way.
life's uncertain - go fast now

User avatar
SteveS
>480
>480
Posts: 481
Joined: Mon Jul 10, 2006 8:28 pm
Location: Nuneaton, Warks. U.K.
Has thanked: 0
Been thanked: 5 times
Flag: England

Re: B44 on the cheap!

Post by SteveS » Mon Jan 20, 2020 1:36 pm

Hi Tom

I was thinking of the type shown below, but I guess if you've gone for oif forks there won't be a fixing point at the bottom near the spindle (axle):
.
BSA B44.jpg
Steve Sewell

eebtr7
>180
>180
Posts: 195
Joined: Fri Dec 21, 2007 3:49 pm
Location: Texas USA
Has thanked: 0
Been thanked: 2 times

Re: B44 on the cheap!

Post by eebtr7 » Mon Jan 20, 2020 5:22 pm

Actually...there is...that is, when you fabricate one from a piece of aluminium 90 degree angle stock. It took me about 25 minutes back in 1977 to make both of them. Plus another 4 minutes to mount them. Granted I was using a rusty ragged hack saw and a dull drill bit. But, when one is 25 years old, the magic happens faster than when one is 68. And, in more ways than one, if you get my meaning and I think you do.

User avatar
koncretekid
>860
>860
Posts: 862
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 9 times
Flag: Canada

Re: B44 on the cheap!

Post by koncretekid » Sat Feb 01, 2020 11:01 pm

I had this fender and mounting bracket up on a shelf waiting for somewhere to use it. It is actually a very nicely made K&L Industries. The fender is plastic, but with a new coat of silver paint and maybe a stripe, it would match the tank. Does it look too modern or out of place?



It fits the scheme of the bike as being cheap!
life's uncertain - go fast now

FranktheWelder
>20
>20
Posts: 26
Joined: Tue Dec 10, 2019 1:35 am
Location: Bellows Falls Vermont
Has thanked: 1 time
Been thanked: 0
Flag: United States of America
Contact:

Re: B44 on the cheap!

Post by FranktheWelder » Sat Feb 01, 2020 11:43 pm

fender color looks pretty close to tank. It would be cool to find a rear fender to match. The alloy rims look great too.
machines, materials and motorcycles.

beat
>1400
>1400
Posts: 5542
Joined: Sun Jun 04, 2006 5:33 pm
Location: Switzerland
Has thanked: 0
Been thanked: 28 times
Flag: Switzerland

Re: B44 on the cheap!

Post by beat » Sun Feb 02, 2020 8:47 pm

as the bike is for using it, - it looks good for me :!: &lt;069 &lt;069

( you need to change the fender when it gos to the national museum later... )

beat :mrgreen:

User avatar
koncretekid
>860
>860
Posts: 862
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 9 times
Flag: Canada

Re: B44 on the cheap!

Post by koncretekid » Mon Feb 03, 2020 5:04 pm

beat wrote:
Sun Feb 02, 2020 8:47 pm

( you need to change the fender when it gos to the national museum later... )

beat :mrgreen:
LOL: It's your bike that will go to the national museum, Beat --- highest mileage BSA B50 in history! Not to mention electric start, re-engineered Mikuni carb, and DIY ignition system.

Tom

P.S. It is interesting how a completely original looking B44 will fetch more money than even the best custom built ones, as Mr. Mike can attest to.
life's uncertain - go fast now

Jeff K
>1200
>1200
Posts: 1226
Joined: Sun Jul 13, 2014 12:30 pm
Location: Bay City, Michigan USA
Has thanked: 30 times
Been thanked: 13 times
Flag: United States of America

Re: B44 on the cheap!

Post by Jeff K » Thu Feb 13, 2020 7:37 pm

LOL, The plastic fender reminds me of my dirt riding days in the 1960's and 70's. Perfect for the bike.
Jeff
