B44 Victor frame drawing

Post by koncretekid » Mon Aug 12, 2019 1:17 pm

I'm building another Victor using leftover parts including a 1970 B25 frame which has the muffler mount on the wrong side for the B44 motor. I can cut that bracket off and move to the right side, but exactly where is it located dimensionally? Is it exactly the same position as the B25, or is it higher up on the frame for the taller motor?
Tom
life's uncertain - go fast now

tridentperu
>40
>40
Posts: 45
Joined: Wed Sep 21, 2016 9:26 am
Location: Gloucester UK
Has thanked: 0
Been thanked: 3 times
Flag: Great Britain

Re: B44 Victor frame drawing

Post by tridentperu » Mon Aug 12, 2019 4:08 pm

It's actually lower down....on the B44.

The B25 one is on the left, 220mm from the top of the welded footrest mounting plate to the centre of the top hole in the exhaust mounting bracket

The B44 on is on the right, 170mm from the top of the welded footrest mounting plate to the centre of the top hole in the exhaust mounting bracket

I would suggest a dry build and put it where it needs to be, and the Victor silencers and brackets differed from year to year.

The bikes I have just measured are both 1969

J

User avatar
koncretekid
>840
>840
Posts: 842
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 8 times
Flag: Canada

Re: B44 Victor frame drawing

Post by koncretekid » Tue Aug 13, 2019 11:59 am

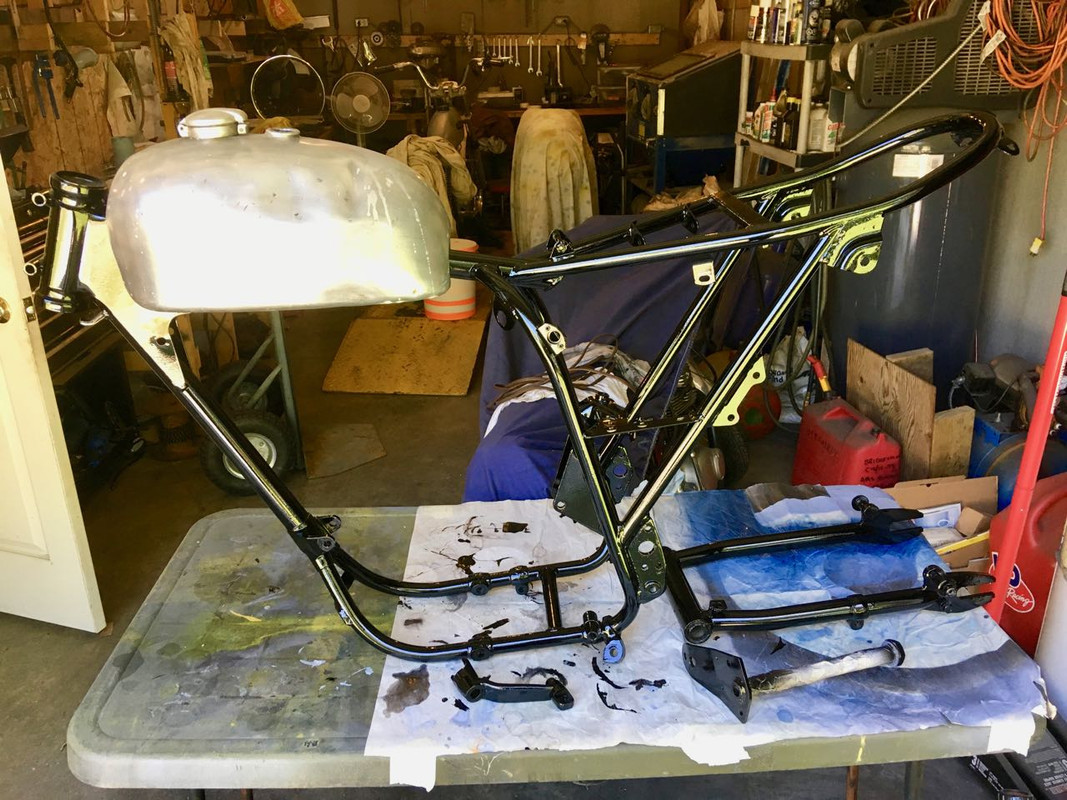

Thanks, although the "dry build" in this case would have to wait quite a while because I need a proper exhaust pipe (nearly impossible to find the correct one) as well as a muffler. So I went ahead and sand blasted and painted the frame because I was bored, and impatient -- it's only paint and I can fix that later. I'm also considering just adding a single lug like the early '66-'67 models as I always liked the peanut muffler best.

life's uncertain - go fast now

tridentperu
>40
>40
Posts: 45
Joined: Wed Sep 21, 2016 9:26 am
Location: Gloucester UK
Has thanked: 0
Been thanked: 3 times
Flag: Great Britain

Re: B44 Victor frame drawing

Post by tridentperu » Wed Aug 14, 2019 8:42 am

I preferred the peanut muffler too, so used one on my '69 build, but had to make up a mounting bracket to fit the '69 frame

have fun, looking good so far

J

Leif
>10
>10
Posts: 11
Joined: Fri May 30, 2014 7:07 am
Location: Michigan, USA
Has thanked: 0
Been thanked: 1 time
Flag: United States of America

Re: B44 Victor frame drawing

Post by Leif » Mon Aug 19, 2019 6:49 pm

What year exhaust pipe are you looking for? I wasn't aware ther is any shortage of VS pipes... though one needs to be smarter than the "one pipe fits all" ebay vendors.

User avatar
Ian Hingley
>1400
>1400
Posts: 1990
Joined: Sat Jun 30, 2007 2:50 pm
Location: Bristol, UK
Has thanked: 5 times
Been thanked: 6 times
Flag: Sao Tome & Principe

Re: B44 Victor frame drawing

Post by Ian Hingley » Mon Aug 19, 2019 8:18 pm

Leif wrote:
Mon Aug 19, 2019 6:49 pm
one needs to be smarter than the "one pipe fits all" ebay vendors.
Yeah, you see "fits all B25/B44/B50"

Actually that's a mixture of different bore, stroke and exhaust port diameter. So probably fits none...

Ian
66 BSA Victor Enduro, 72 BSA Lightning, 62 BSA B40 trials, 89 H*nda Bros 650, 96 Aprilia Moto 6.5, 2000 Aprilia Moto 6.5

User avatar
minetymenace
Gerry1
Gerry1
Posts: 7380
Joined: Wed May 26, 2004 1:00 am
Location: On the edge of Salisbury Plain, England
Has thanked: 12 times
Been thanked: 46 times
Flag: England
Contact:

Re: B44 Victor frame drawing

Post by minetymenace » Mon Aug 19, 2019 10:03 pm

:laugh
There is no evidence to support the notion that life is serious.
Abyssinian Wire-Haired Tripehounds Gnash.

Johnq1
>40
>40
Posts: 54
Joined: Fri Jun 09, 2017 8:25 pm
Location: Preston
Has thanked: 0
Been thanked: 0
Flag: England

Re: B44 Victor frame drawing

Post by Johnq1 » Tue Aug 20, 2019 5:40 pm

had this made by Ben at Raysons exhausts for my b25 special, he makes front pipes and silencers
Attachments

User avatar
koncretekid
>840
>840
Posts: 842
Joined: Sun Nov 20, 2005 1:22 am
Location: Yarmouth, Nova Scotia
Has thanked: 2 times
Been thanked: 8 times
Flag: Canada

Re: B44 Victor frame drawing

Post by koncretekid » Wed Aug 28, 2019 12:47 pm

Thanks for the replies. As for the correct exhaust, I bought a new one from a reputable vendor that didn't fit my Colorado B44, so I bought a used one from BSA Unit Singles - - that fit. I've bought another one on ebay, but that didn't fit either. I have a nice new one that might be B25 high right side, not plated, so I may be able to modify it to fit. As for the lug on the frame, I'll just have to deal with that when the time comes.
life's uncertain - go fast now

Leif
>10
>10
Posts: 11
Joined: Fri May 30, 2014 7:07 am
Location: Michigan, USA
Has thanked: 0
Been thanked: 1 time
Flag: United States of America

Re: B44 Victor frame drawing

Post by Leif » Fri Aug 30, 2019 7:30 pm

The factory exhaust pipes had the year and model "sort of" stamped at the arse end, usually something like B44 69. Generally hidden by the muffler and carbon/mung build up... don't know if any aftermarket pipes had these stamps. This has proven a big help identifying very similar looking exhausts over the years.

Post Reply
